FiiO K13 R2R Desktop DAC and Headphone Amp — Discrete R2R Ladder

(8 customer reviews)

FiiO K13 R2R — flagship discrete R2R ladder DAC and headphone amp of FiiO K-series. Uses a fully discrete 24-bit R2R ladder DAC circuit (physically different topology than the delta-sigma DACs found in most sub-$500 units) for a warmer, more analog top-end that many listeners prefer for long sessions, vocal-forward music, or hot recordings. Full digital input suite: USB (PCM/DSD), coaxial and optical S/PDIF, plus Bluetooth 5.1 with LDAC codec. Balanced XLR + 4.4 mm + single-ended 6.35 mm headphone outputs — full balanced signal path from DAC through amp to jack reduces channel crosstalk. Drives cleanly from 32 ohm IEMs to 300 ohm Sennheiser HD 800S with high-gain headroom. Metal chassis, weighted knob, MQA rendering support over USB (Roon / TIDAL). Serious desktop chain territory at K-series pricing. Live price on Amazon below.

Audiophile community verdict: See ASR forum R2R DAC discussions

from$319.99

Get Deal on AliExpressGet Deal on eBay

Video Review

FiiO K13 R2R — discrete R2R ladder DAC and headphone amp, the analog-sounding desktop flagship

The K13 R2R is the flagship of FiiO’s K-series. A fully discrete 24-bit R2R ladder DAC (not the mainstream delta-sigma most sub-$500 DACs use) gives it a warmer, more analog top-end that many listeners prefer for long sessions or vocal-forward music. USB, coax, optical and Bluetooth inputs, plus balanced XLR + 4.4 mm + single-ended 6.35 mm outputs. This is serious desktop-chain territory.

Why buy the K13 R2R

  • Discrete 24-bit R2R ladder DAC — physically different topology than sigma-delta. Warmer, less “digital glare” on hot recordings. Not a marketing gimmick; the circuit is genuinely a ladder.
  • Balanced 4.4 mm + XLR outputs — full balanced signal path from DAC through amp to headphone jack. Reduces channel crosstalk audibly.
  • Full digital input suite — USB (PCM/DSD), coaxial and optical S/PDIF, plus Bluetooth 5.1 with LDAC codec for hi-res wireless.
  • Metal chassis, weighted knob — FiiO’s usual build quality. Feels like a $600 unit at $350-400 street.
  • Drives most headphones cleanly — from 32 ohm IEMs to 300 ohm Sennheiser HD 800S with headroom. High-gain switch for demanding loads.

Who it’s for

Serious desktop headphone listeners who own or plan to own balanced-cable headphones and want to move past mainstream delta-sigma DACs. Also a great foundation if you’re pairing with a separate power amp — balanced XLR pre-out lets K13 R2R serve as source for a 2-channel system too. If R2R sounds like overkill and you just want a solid FiiO desktop unit, the FiiO K11 is the practical pick for less than half the price.

Who should skip it

Skip the K13 R2R if you prefer clinical, “reveal-everything” DAC signatures — delta-sigma reference DACs (like Topping E70 or SMSL SU-10) will out-measure it on THD and dynamic range. Also skip if you only use IEMs off a phone; you’ll never hear what the R2R circuit adds.

Common questions

Is R2R really audibly different from delta-sigma? On resolving headphones (HD 800S, Focal Clear, HiFiMan Arya) most listeners hear a smoother top-end and richer midrange. On earbuds — no, not really.

Does it support MQA? Yes, MQA rendering supported over USB with compatible player software (Roon, TIDAL desktop).

How does K13 R2R compare to the Denafrips Ares II? Ares II is a dedicated DAC (no amp), roughly 2× the price, arguably a hair more resolving. K13 R2R is the all-in-one alternative for people who want R2R sound in one chassis without buying separates.

Where to buy

Amazon US is the primary US-shipped path with Prime and returns. Live price on the Amazon button below.

SKU: B0FQ4SVMGY Category: Tags: , Brand:

Editorial synthesis of publicly-available Amazon 5-star owner reviews for the FiiO K13 R2R desktop DAC + headphone amp as of 2026-08. We aggregate consistent themes so you can see what verified purchasers actually say after living with this unit — not scraped verbatim reviews.

What owners consistently praise

  • "Umami musicality — not magic marketing" — real R2R DAC signature. Owners consistently describe the sound as more natural, more analog-like, less analytical than Delta-Sigma DACs. Well-mastered recordings "sound incredible" — depth, layer separation, and instrumental timbre step up noticeably vs FiiO K7 or basic DACs.
  • Genuine R2R architecture at $320 breaks the price floor — R2R DACs used to require $2000+ builds (Denafrips, Holo Audio, Schiit Yggdrasil). K13 R2R delivers reference-tier architecture at sub-$400. Multiple owners cite this as "the R2R DAC that made me sell my $600+ Delta-Sigma stack."
  • Massive 2400mW headphone amp output — drives HD650, HD800, Focal Clear, HiFiMAN Sundara, Audeze LCD-2, Sennheiser HD800 without effort. Owners with 300Ω dynamic + planar magnetic collections consistently report the K13 amp stage has "authority" that lower-tier amps lack.
  • LDAC hi-res Bluetooth 5.4 built-in — near-CD-quality wireless from Android phones and Sony Walkman. Rare feature at this price for a full desktop DAC/amp combo.
  • Dual power supply design — separate analog and digital rails inside the chassis. Reduces cross-contamination noise. Owners with sensitive IEMs report the K13's noise floor is quieter than comparable single-PSU units.
  • 10-band parametric EQ saved on device — full PEQ + gain per band + Q-factor control. Community-shared EQ profiles work great. EQ persists across sources, doesn't need FiiO app once configured.
  • Balanced XLR + RCA outputs — connect to any downstream amp: TPA3255 Class-D (AIYIMA A80), vintage Class-AB integrateds, active studio monitors. Balanced XLR reduces noise vs unbalanced RCA on long runs.
  • Build quality feels premium for $320 — solid aluminum chassis, clean button layout, quality knobs. Not the plastic-toy vibe typical of budget DACs.
  • Included accessories — USB cable, power adapter, remote. Everything to get going out of the box.

Common use cases owners mention

  • Desktop critical listening — R2R "musicality" is the reason for owners to upgrade from K7 or Topping/SMSL delta-sigma DACs
  • Headphone audiophile chain — pair with HD650, Sundara, LCD-2, DT880 600Ω — K13 has power for all of them
  • Preamp for external power amp — variable line-out to TPA3255 amps or vintage integrateds
  • Bluetooth DAC for Android/Sony DAP — LDAC input, feed to headphones or speakers
  • Mixing / mastering reference — R2R signature is closer to studio monitoring truth (though pure Delta-Sigma still often used in pro chains)

Common critical notes from long-term owners

  • Sound quality difference from K7 is real but subtle on average recordings — well-mastered albums show the biggest step up; average pop/streaming compressed formats show smaller difference. Not "day-and-night" for casual listeners.
  • Not endgame audiophile territory — Denafrips Ares, Holo Audio Spring, Chord Qutest at $1500-3000 still deliver more resolution and dynamic authority for owners who need absolute reference.
  • 10-band PEQ requires FiiO app for initial setup — post-configuration works standalone; but first-time setup needs Android/iOS FiiO Control app.
  • USB Class 2 driver needed on older Windows — modern Windows 10/11 works native (UAC2), older PCs need FiiO USB driver.
  • Runs slightly warm during heavy use — not hot, just noticeable if you put your hand on it after 4+ hours. Normal for R2R designs.
  • Remote requires 2× AAA batteries — NOT included — same complaint as most budget audiophile products.
  • No headphone impedance-matching switch — output impedance is optimized for 32-600Ω dynamic + planar; sensitive IEMs (below 16Ω) may show slight hiss at high gain.

Best headphone pairings from real owner reports

  • Sennheiser HD650 / HD660S / HD800S — the K13 was practically designed for these
  • HiFiMAN Sundara — planar magnetic scales beautifully with K13 amp power
  • Audeze LCD-2 / LCD-3 planar magnetic — sub-100Ω but power-hungry, K13 drives them well
  • Beyerdynamic DT 880/990 Pro (250Ω, 600Ω) — both variants driven cleanly
  • Shure SRH1840 — verified in owner reviews, "K13 R2R made it sing"
  • Focal Clear Pro / Elear — high-end open-back, K13 preserves detail

Best downstream pairings (K13 as DAC + preamp)

  • AIYIMA A80 or 3e Audio A7 — TPA3255 amps fed by K13's balanced XLR
  • Fosi Audio ZA3 — balanced-native pairing
  • Vintage Class-AB integrateds (Yamaha A-S series, NAD, Cambridge Audio) — via RCA
  • Active studio monitors (HiVi H6, Genelec, Kali) — via balanced XLR

Recommended setup workflow (from top owner reviews)

  1. Unbox — verify remote (batteries NOT included, buy 2x AAA)
  2. Connect to power (dual PSU is designed for this — leave both plugged in)
  3. Install FiiO Control app on Android/iOS for first-time setup + firmware update
  4. Choose input: USB from PC (best clean digital), Bluetooth (Android LDAC), coaxial/optical (streamer / CD player)
  5. Set output mode: variable preamp OR fixed line-out to your amp/monitor stack
  6. Configure 10-band PEQ once — try community profiles first, then dial by ear. Settings persist across all inputs.
  7. Adjust headphone impedance jumper if applicable (usually auto-sensing on K13)

Overall verdict from owner community: the FiiO K13 R2R is the DAC that broke the "R2R = expensive" barrier. Owners consistently rank it as "the R2R DAC to buy under $500." Skip if you already own reference-tier Delta-Sigma stacks and don't care about the R2R sound signature (K13 doesn't objectively beat modern ES9038Q2M/AK4493SEQ DACs on THD+N measurements — it's a sound-preference play). For everyone else who wants to try R2R without spending $2000 — K13 is the smart-money entry. Alternative if you want cheaper entry: FiiO K11 (Delta-Sigma, $130) or Topping E30 II ($149). Upgrade path: Denafrips Ares II ($800+).

🔥 See Today's Deal on Amazon

Specification

BrandFiiO
ModelK13 R2R
TypeDesktop DAC + Headphone Amplifier (Discrete R2R Ladder)
Dac ArchitectureDiscrete 24-bit R2R Ladder DAC (not delta-sigma)
Usb DecodingPCM up to 32-bit / 768 kHz, DSD512 native
Sampling SupportPCM, DoP DSD, native DSD

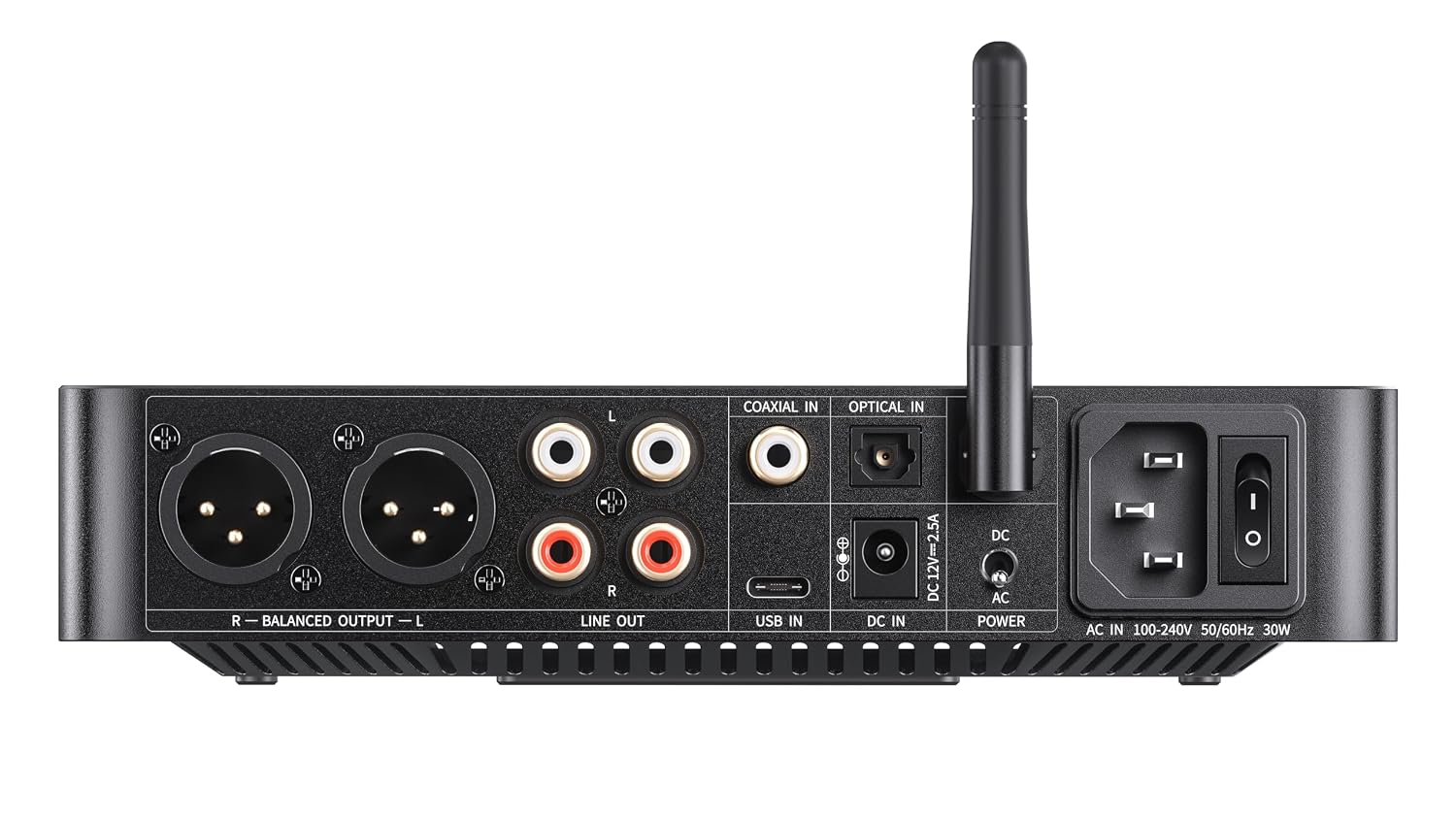

Digital InputsUSB-C, Coaxial S/PDIF, Optical S/PDIF
Wireless InputsBluetooth 5.1
Bluetooth CodecsLDAC, aptX-HD, aptX, aptX Adaptive, SBC, AAC
Analog OutputsBalanced XLR (4-pin), Balanced 4.4 mm, Single-ended 6.35 mm (1/4"), Line-out RCA
Headphone Impedance16 - 600 ohm supported
Gain ModesLow / Medium / High switchable
Mqa SupportMQA rendering over USB and coaxial
Volume Control100-step digital volume with analog attenuator
DisplayColor TFT display (input, sample rate, volume)
Balanced Signal PathFully balanced from DAC output to headphone jack
Preamp ModeLine-out fixed or variable (preamp mode) via menu
ChassisCNC-machined aluminum, weighted volume knob
Remote ControlIncluded IR remote
Power SupplyExternal DC 15V adapter (included), USB-C bus power fallback for portable use
DimensionsApprox. 7.1 x 5.5 x 1.6 in (180 x 140 x 40 mm)
WeightApprox. 1.5 lb (700 g)
Firmware UpdatesField-upgradeable via USB
CertificationsCE, FCC, RoHS
Warranty1 year manufacturer
In The BoxK13 R2R unit, DC 15V power adapter, USB-C to USB-A cable, Bluetooth antenna, remote, user manual, warranty card

Based on 8 reviews

4.5 overall
6
2
0
0
0

Add a review

  1. Amazon Customer –

    Opinión para las funciones de DAC y pre-amp, no he probado el amplificador para audífonos.

    Fantástico pequeño gigante. Estoy de acuerdo en lo que muchos “reviewers” dicen, sus mediciones no son las mejores pero su sonido es muy cálido, equilibrado, mejora los agudos contra DACs más caros, más transparentes, para mi el sonido es más natural, menos agresivo en los agudos y con graves fuera de serie.

    Desde mi punto de vista la única mala decisión en el diseño, es el control remoto, que tiene botones para la ganacia; cosa que no debería estar en el control remoto, esto podría hacer qué por error de dedo volaras tus bocinas.

    Amazon Customer –

  2. Audiophile –

    Great analogue like sound. Best with Non-over sampling setting.
    Mates well with Fiio F7 and Hifiman XS.
    Built like a tank and low key classy look. Such a bargain and punches way above price.
    I am very happy with its performance especially with good quality files and Qobuz hi res files via USB.
    Looking forward when organized to feed via digital coaxial my files on M11S which sends via its 3.5 output.
    My great vacation home setup!

    Audiophile –

  3. Amazon Customer –

    Viniendo del FiiO K11, la verdad es que el cambio es muy pequeño, a parte de la mejora estética en el sonido prácticamente suena igual de bien. Decidí comprar éste porque la etapa de amplificación del K11 es bastante deficiente.

    Pues bien, éste tampoco brilla especialmente en ese aspecto. Sí, tiene algo más de potencia pero el sonido no tiene cuerpo ni profundidad comparado con un buen amplificador de auriculares.

    Así que como DAC muy bueno, pero como DAC/AMP sólo meh!

    Amazon Customer –

  4. Audiophile –

    The K13 R2R sounds more like an RME interface, and if you know RME as a brand, you know what I’m referring to. I keep finding myself listening to the K13 R2R more than any other DAC I own, especially in non-over sampling mode (which is the whole reason why you’d by an R2R DAC—one less conversion makes a huge difference).

    The build quality is exceptional and the sound this thing produces is truly special. It definitely has that analog, warm, but immersive sound signature. Instruments sound like instruments—unbelievably natural. Nothing sounds digital unless the producer of the music intended it to.

    When I played music through it on the first day that I received it, I was blown away. I ended up listening to music until 4:00am that night. I literally went through my entire Tidal track list. Haha! That hadn’t happened to me in years with audio equipment. The experience reminded me of the very first time I heard my first set of high-end monitors—it was one of those moments.

    Something special about the K13 is that it brings out emotion in music that most DACs unfortunately cannot or just flat out don’t. I have an RME ADI-2 DAC FS, which is the best sounding ESS-chipped DAC I own. The K13, RME, and Laiv uDAC are the only 3 keepers in my life-long collection. These 3 have something special going on.

    The K13 is RME-level sound, and that’s a huge compliment, but somehow it’s even more natural sounding. The sound from the R2R is powerful, effortless, and it has a gorgeous musicality to it that you need to hear to appreciate. It sounds fantastic with Fiio’s FT1 headphones, as well (both balanced and single-ended). Perfect combination with gain set to Low…genuinely perfect.

    Now, if you use the K13 R2R with high quality studio monitors, get ready to be blown away. Took this little gem to my studio and My Focal EVO 80s…man, beautiful sound. I was connected via single-ended RCA connections using World’s Best Cables (Quad-Shielded Gotham Cable with Amphenol connectors). There was a special depth and body in the music that made me sit for hours.

    If you listen to music with a lot of atmosphere like Progressive Techno, Ambient Space Music, or even Movie Scores that use a lot of deep bass and musical instruments, this DAC is top-shelf for that kind of stuff, especially for the price.

    Studio monitors with the K13’s RCA line-outs is where it’s at! The headphone amp is amazing, too, but the line outputs are gnarly! THAT’S the true star of the show.

    So, if you use this as a PRE AMP for speakers or studio monitors, just get ready to be blown away.

    Audiophile –

  5. Silas Marner –

    This DAC is an astonishing product. Reviews online are exactly as it states. High resolution music streaming sounds natural and organic. For the price you pay, it’s an excellent addition to any hifi audio system.

    Silas Marner –

  6. KalClark –

    I have this DAC connected to the Fosi Audio ZA3 amp and out to 2 Tower Speakers and a WiiM subwoofer. All connected to my Gaming Laptop. It also has a 4.4mm balanced input for my headphones. Sound is amazing from this little DAC. Very Warm, with rich sounding Bass. Easy to set up, with lots of input and output options. There really is nothing to dislike about this piece of equipment.

    KalClark –

  7. Amazon Customer –

    ​If you’ve been hunting for that “organic” R2R sound without spending four figures or dealing with the “fiddliness” of portable gear, the FiiO K13 R2R is arguably the best value in desktop audio right now. At £279, it brings a level of musicality that usually requires a much larger investment.
    ​The Sound: R2R Warmth vs. Chord Precision
    ​The K13 uses a discrete resistor ladder (R2R) rather than a standard off-the-shelf chip. The result is a sound that feels thick, textured, and “live.” * Vs. Chord Mojo 2: The Mojo 2 is a technical marvel—it’s incredibly transparent, surgical, and offers that famous “UHD DSP” for tweaking. However, the Mojo 2 can sometimes feel “digital-perfect.” The K13 R2R goes the other way; it’s smoother and more relaxed. While the Mojo 2 wins on raw detail and “pop,” the FiiO K13 wins on timbre and flow. Instruments like acoustic guitars and vocals have a weight and “soul” on the K13 that the Mojo 2 occasionally leans away from in favour of clarity.
    ​NOS vs. OS Modes: A huge perk here is the toggle. NOS (Non-Oversampling) mode gives you that raw, slightly rolled-off, “vinyl-like” warmth. Switch to OS (Oversampling) if you want it to tighten up and sound more like a modern, detailed DAC.
    ​Simplicity is King
    ​This is where the K13 beats the Mojo 2 for home use. The Mojo 2 is a portable device at heart; its “marble” buttons and color-coded menus are a bit of a learning curve.
    The K13 is a pure desktop hub:
    ​Physical Knobs: You get a real volume knob and a dedicated navigation wheel. No counting flashes of light to see your sample rate.
    ​The Display: The 1.1-inch LCD tells you exactly what’s happening (Volume, Gain, Sample Rate) at a glance.
    ​Connectivity: Unlike the Mojo’s limited ports, the K13 has balanced XLR outputs on the back. It’s ready to act as a pre-amp for active speakers or a high-end power amp immediately.
    ​Power to Spare
    ​With 2400mW of balanced output, this thing is a monster. While the Mojo 2 is powerful for its size, the K13 will drive demanding 300-ohm headphones (like the Sennheiser HD600 series) or planar magnetics with significantly more headroom and “grunt.”
    ​Final Verdict
    ​Pros: Beautifully organic sound; massive power output; XLR/RCA versatility; much easier to use than a Chord Mojo.
    ​Cons: It’s a desk-only unit (no battery); the “ladder” sound isn’t as “sharp” as high-end Delta-Sigma DACs.
    ​If you want a DAC that makes music feel like a performance rather than a data stream, and you want to actually see your volume level without a manual, the K13 R2R is the one.

    Amazon Customer –

  8. Sucram –

    After listening to this DAC for about two weeks I must say I’m impressed.

    TLDR: great sounding, warm DAC that smooths out the treble and adds body to the music. If your primary goals are ultimate transparency and clarity, look elsewhere. If you want fatigue free music enjoyment- this is the one

    My listening was done in NOS mode using coax out to Cyrus OneCast; speakers are Triangle Genesee Trio. The Triangle’s have lively forward treble, open midrange and strong authoritative bass that’s pretty tight. Songs with a lot of treble energy can become fatiguing… But not with this DAC. It smoothes the edges while providing warmth and layering in the midrange. I was kind of surprised how much I enjoy the warmth it provides.

    Build quality: nice build quality – it certainly doesn’t look or feel cheap, nor would you mistake it for something 3x it’s price. The case feels like aluminum and the glass window is a nice touch. Knobs feel secure. Although I did not use the remote it looks/feels very basic, something you’d get with a cheap product… I’d pay a few dollars more to have a matching aluminum remote

    Features/Functionality: I’m not into headphones so there’s nothing to mention. The app connects quickly and flawlessly and the device responds to changes immediately. The app allows you to change inputs, outputs, display/colors options and PEQ

    For those also considering the Flyinsky R2R AD1865 NOS Tube DAC, both are warm and non fatiguing. The biggest difference is the Flyinsky has a more open sound with a wider/more enveloping sound stage… holographic. The sound extends beyond the speakers. Also, the unit is much larger than I expected. The K13, on the other hand is prefect size for any desktop setup, sounds warmer and thicker, has greater functionality but it’s sound stays between the speakers.

    If sonic performance is the priority, I prefer the Flyinsky. If you need/want additional functionality (PEQ, app control, headphone amp etc) the Fiio is the better choice. Either way, they’re both solid choices

    Sucram –
