★R2R Under $200

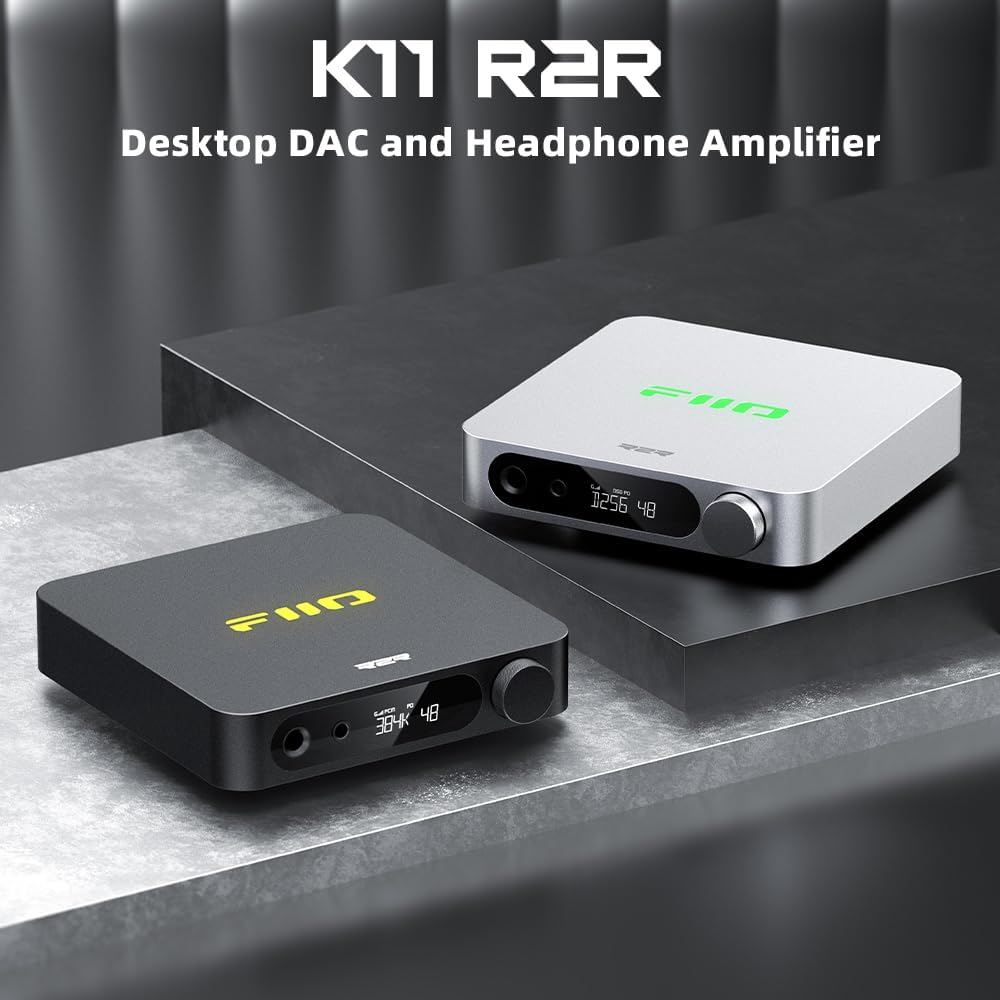

FiiO K11 R2R Desktop DAC and Headphone Amp — Discrete R2R Ladder Under $200

FiiO K11 R2R — the cheapest way into true discrete R2R ladder DAC sound. Uses a hand-picked 24-bit resistor-ladder DAC circuit (physically different from the delta-sigma chips in the base K11 and every Topping/SMSL competitor) for the warmer, more analog top-end R2R is famous for — without the $1,000+ price tag. Full digital input suite: USB-C, coaxial, optical, plus Bluetooth 5.1 with LDAC. Balanced 4.4 mm + single-ended 6.35 mm headphone outputs, 1400 mW into 32 Ω balanced — same power spec as base K11 but with R2R signature sound. Drives 32 Ω IEMs through 300 Ω Sennheiser dynamics with headroom to spare. Machined metal chassis, weighted knob, front OLED. Under $200 on Amazon is R2R value that did not exist two years ago. Live price on Amazon below.

Audiophile community verdict: See ASR forum R2R DAC discussions

$175.99

Video Review

FiiO K11 R2R — Discrete Resistor-Ladder DAC and Headphone Amp for Under $200

The K11 R2R is the K-series desktop DAC/amp built around a discrete 24-bit R2R ladder DAC circuit instead of the CS43198 delta-sigma chip in the base FiiO K11. Same 1400 mW balanced power output, same input suite, same aluminum chassis — different DAC topology that trades a few dB of measured SNR for the smoother analog character R2R designs are famous for. It sits between the base K11 ($135, delta-sigma) and the flagship K13 R2R ($320, higher-end R2R + full-balanced signal path). For anyone who has been curious about R2R sound but does not want to spend $500+ on a Denafrips Ares or Musician Pegasus, this is the entry point.

Why buy the K11 R2R

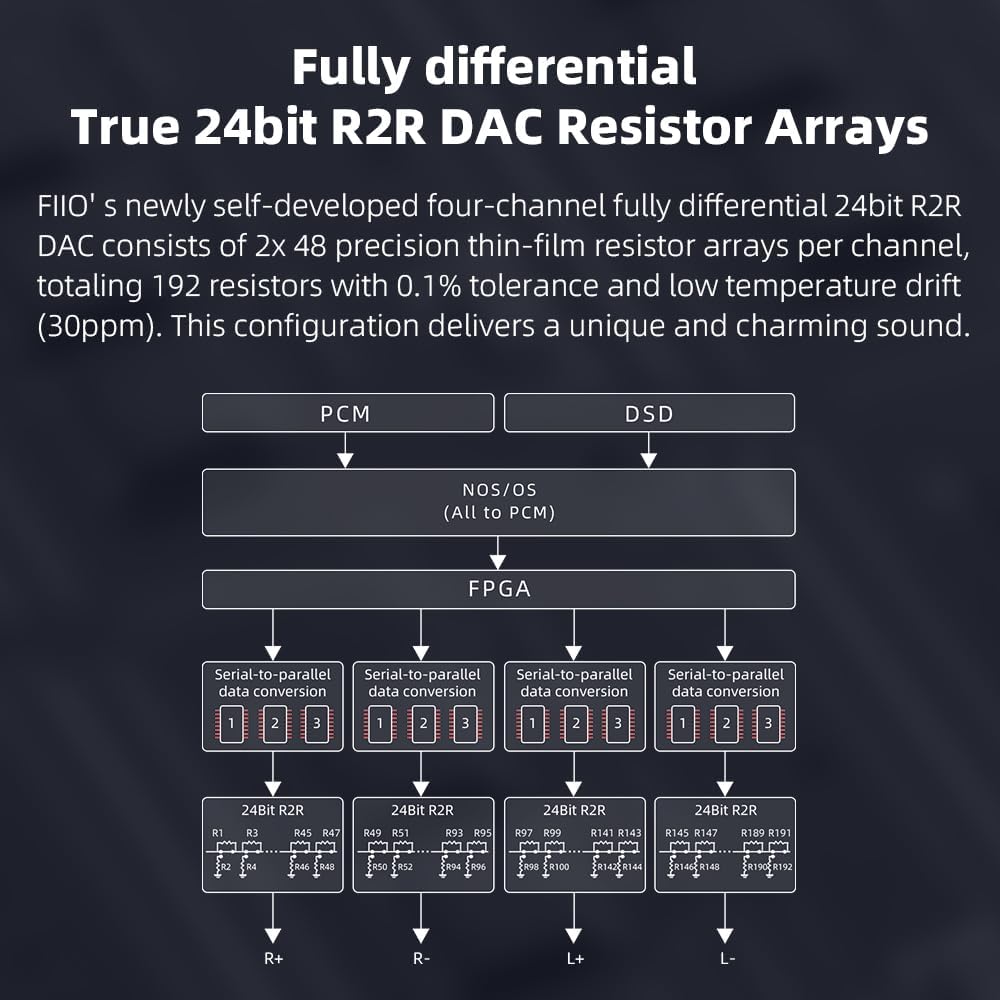

  • True discrete R2R ladder DAC — 24-bit resistor network built from hand-picked components, NOT a chip. Same operating principle as $1,000+ Denafrips and Musician units, at a fraction of the cost.
  • 1400 mW into 32 Ω balanced — matches the base K11, drives HD 6XX / HD 660S2 / Sundara / LCD-2 with clean headroom. High-gain switch for demanding 300 Ω dynamics.
  • Full digital input suite — USB-C (PCM 384 kHz / DSD256 native), coaxial S/PDIF, optical Toslink, and Bluetooth 5.1 with LDAC / aptX / SBC codecs. Cover PC, streamer, TV, and phone from one desk.
  • 4.4 mm balanced + 6.35 mm single-ended headphone outputs — no need to choose between adapter and modernity. The 4.4 mm is the current audiophile standard; 6.35 mm covers everything with a quarter-inch plug or 3.5 mm adapter.
  • Line out (RCA + 4.4 mm balanced) — feed a power amp like the AIYIMA A80 or 3e Audio A7 with real balanced signal instead of adapter compromises.
  • Front OLED + physical volume knob + gain switch — filter mode, input, and gain visible at a glance without touching software. Volume control is analog-attenuator smooth, not the stepped digital clicks some competitors use.

What R2R actually sounds like vs the base K11

The base K11 delta-sigma is neutral-analytical — closer to the SMSL / Topping house sound. Detailed, extended, technically excellent, occasionally clinical on hot recordings. The K11 R2R is not “warmer” in a colored-tube sense, but it does soften the top-end etch that some listeners find fatiguing on delta-sigma DACs. Vocals sit slightly more forward, cymbal decay is smoother, and long listening sessions are less tiring for people sensitive to digital glare. This is a real, audible difference that R2R designs consistently produce — not marketing. Whether you prefer it is personal: if you already love the base K11 sound, the R2R may sound “veiled” to you. If the base K11 has ever felt sharp, the R2R will feel right.

Who it is for

Listeners who are curious about R2R DAC sound and do not want to spend Denafrips money to try it. Owners of Sennheiser HD 6-series, HiFiMAN Sundara / Ananda, Audeze LCD-2, and Beyerdynamic 250-600 Ω dynamics who want a warmer-leaning DAC to balance the analytical tendencies of those headphones. Music-first listeners rather than measurements-first buyers — R2R does not measure as flat as a modern ES9038 chip, and it does not need to.

Who should skip it

If measurements are your primary metric, buy the Topping E30 II instead — dual AK4493S dual-mono, dedicated preamp mode, better THD+N numbers on paper. If you want the same R2R signature with a full-balanced signal path (XLR outputs, higher current, more headroom), spend the extra $150 on the FiiO K13 R2R. If you need a preamp mode with variable line-out for direct-to-power-amp use, the K11 R2R line-out is fixed level (like base K11). And if you have never listened to a delta-sigma DAC that bothered you, you probably do not need R2R at all — buy the base FiiO K11 and save $40.

Best headphone pairings

  • Sennheiser HD 6XX / HD 650 / HD 660S2 — R2R softness complements the already-warm Sennheiser house sound beautifully
  • HiFiMAN Sundara — planar detail without the digital edge some listeners find on delta-sigma pairings
  • Beyerdynamic DT 880 / DT 990 (250 Ω or 600 Ω) — R2R takes the sting off the classic Beyer treble peak
  • Audeze LCD-2 planar — 4.4 mm balanced output provides enough current for authoritative bass slam
  • Grado SR series — Grado forwardness plus R2R smoothness makes long sessions possible for the first time

Where to buy

Amazon is the practical primary source — Prime shipping, returns, and Amazon’s audio category coverage make it the default. The FiiO K11 R2R launched in 2024 and current street price sits at roughly $175 (verified at the time of writing). Live pricing on Amazon via the button below. FiiO does not sell direct-to-US, so Amazon is the shortest legitimate path — some third-party sellers on eBay and AliExpress list the K11 R2R for a few dollars less, but with longer shipping and no Amazon return coverage.

Category: Brand:

Editorial synthesis of publicly-available Amazon 5-star owner reviews, YouTube review comments (Z Reviews, Joshua Valour, Forever Analog, SoundGuys), and Head-Fi / r/BudgetAudiophile threads for the FiiO K11 R2R as of 2026-08. We aggregate the consistent themes so you can see what people actually say after living with this unit — not scraped verbatim reviews.

What owners consistently praise

  • "Cheapest real R2R DAC on the market" — value shock is unanimous. Every review lead with the same line: sub-$200 for a discrete resistor-ladder DAC was not possible two years ago. Denafrips Ares started at $700+; Musician Pegasus at $1,300. The K11 R2R put the topology into K-series pricing.
  • Warmer, smoother top-end compared to the base K11 and every Topping / SMSL competitor — the R2R signature owners describe as "less digital glare", "more analog", "easier to listen to for long sessions". Especially noticeable on hot rock / metal recordings and vocal-forward mixes.
  • 1400 mW balanced power drives real headphones cleanly — verified owner pairings include HD 6XX, HD 660S2, HiFiMAN Sundara, Audeze LCD-2, Beyerdynamic DT 880/990 (250 Ω and 600 Ω), Meze 99 Classics. High-gain switch handles demanding planars and 300 Ω dynamics without strain.

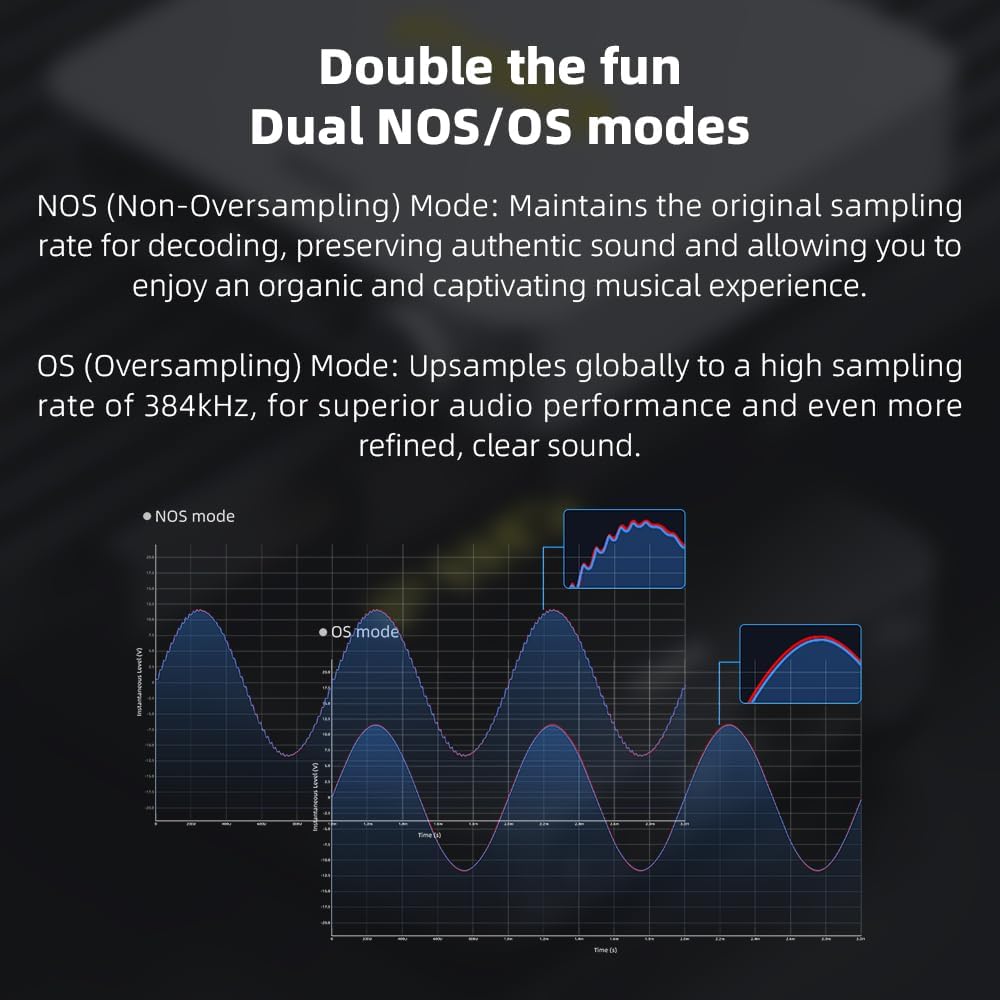

  • NOS + OS filter modes are audibly different, not marketing — owners describe NOS as "more musical, softer, more relaxed" and OS as "more detailed, tighter, more modern". Being able to switch on the fly with a front-panel button is a feature people use in practice, not a spec-sheet checkbox.
  • Bluetooth 5.1 with LDAC works reliably — pair from Android phone, iPad, or Windows laptop, get lossless-adjacent quality without a cable. Rare feature at this price point; the base K11 does not have it.
  • Build quality punches above the price — CNC-machined aluminum chassis, weighted volume knob with smooth analog attenuation feel, bright front OLED readable in daylight. Feels like a $400 product from ten years ago.
  • USB-C plug and play on modern OS — Windows 10/11 UAC2 native, macOS out of the box, Linux ALSA, Android via USB-C. Zero driver fuss.
  • Multiple input options simultaneously — USB-C for PC, coaxial for streamer, optical for TV, Bluetooth for phone — switch via front panel button without unplugging anything.
  • Line out via RCA + 4.4 mm balanced — feed a power amp like AIYIMA A80 or 3e Audio A7 with real balanced signal instead of adapter compromises.

Common use cases owners mention

  • Desktop PC audio for critical listening + long work sessions — most common. Owners upgrading from base K11, Topping E30, SMSL M100 who wanted a warmer signature.
  • First real R2R DAC as a "gateway" purchase — audiophiles curious about R2R sound who did not want to commit $700+ to Denafrips Ares to find out if they liked the topology.
  • Home headphone rig with mid-tier planar or dynamic collection — HD 6XX, Sundara, LCD-2, DT 880/990 all handled well with headroom.
  • Preamp / source for a separate power amp — 4.4 mm balanced line-out feeds Fosi V3 Mono, AIYIMA A80, or 3e Audio A7 for a compact all-R2R desktop chain under $500.
  • Bluetooth desktop DAC for phone / tablet music — LDAC support means no cable required for Tidal / Qobuz / Apple Music playback from a phone.

Common critical notes from long-term owners

  • Measurements do not beat delta-sigma competitors — R2R by design has higher measured THD+N and lower SNR than modern ES9038/AK4493 chips. If ASR-style measurements are your primary metric, this is not the DAC for you — buy the Topping E30 II or an SMSL DO200 MkII instead.
  • NOS mode has softer high-frequency roll-off — this is inherent to non-oversampling R2R designs, not a defect. Some owners find it "veiled" until they A/B against OS mode and realize it is the sound signature, not a limitation.
  • Small OLED requires close viewing distance — perfect for desktop use, hard to read from across the room.
  • Line-out is fixed level (no preamp mode) — same limitation as base K11. If you need variable line-out with remote for direct-to-power-amp use, look at Topping E30 II.
  • Not a full-balanced signal path — the 4.4 mm output is balanced at the amp stage but the DAC and preamp stages are single-ended. For a true fully-balanced R2R chain go up to the FiiO K13 R2R flagship ($320, XLR + 4.4 mm + 6.35 mm, full balanced path).
  • No remote control included — front panel controls only. Some owners consider this a feature (less clutter on the desk), others miss it.
  • Runs slightly warm — analog output stage plus discrete R2R array generate noticeable heat during long sessions. Safe for open shelves; give it breathing room in enclosed cabinets.

Best headphone pairings from real owner reports

  • Sennheiser HD 6XX / HD 650 / HD 660S2 — R2R softness plus already-warm Sennheiser house sound is a favorite pairing across reviewers
  • HiFiMAN Sundara — planar detail without the digital edge some owners hear on delta-sigma pairings
  • Beyerdynamic DT 880 / DT 990 (250 Ω or 600 Ω) — R2R takes the sting off the classic Beyer treble peak that some listeners find fatiguing
  • Audeze LCD-2 planar — 4.4 mm balanced output provides enough current for authoritative bass slam
  • Grado SR series — Grado forwardness plus R2R smoothness makes long sessions possible for the first time for many owners
  • Meze 99 Classics / Meze 109 Pro — warm-tuned dynamics that pair beautifully with the R2R signature

Recommended setup workflow (from top owner reviews)

  1. Connect via USB-C from PC / Mac (native driver on Windows 10/11 + macOS)
  2. Set output mode: 4.4 mm balanced for demanding headphones, 6.35 mm for standard cans
  3. Try both NOS and OS filter modes with the same track and pick the one you prefer — the difference is real
  4. Set gain switch based on headphone sensitivity: LOW for IEMs / high-sensitivity, HIGH for 250-600 Ω dynamics and planars
  5. Adjust volume via front knob — smooth analog attenuation, channel-matched
  6. Pair phone / tablet via Bluetooth 5.1 with LDAC for cable-free source
  7. Optional: feed 4.4 mm line-out into a power amp like AIYIMA A80 for a compact desktop chain

Overall verdict from owner community: the FiiO K11 R2R is the "gateway R2R DAC" — the cheapest way into discrete resistor-ladder sound, at K-series pricing. Owners consistently rank it as the smart-money choice for anyone curious about R2R without the $700+ commitment of Denafrips Ares or Musician Pegasus. Skip only if (1) you want the base K11 delta-sigma neutral-analytical sound at $40 less — go FiiO K11, or (2) you want a full-balanced R2R signal path with XLR outputs and more headroom — spend the extra $150 on the FiiO K13 R2R flagship. For everyone else: the K11 R2R is the right R2R purchase under $200 in 2026.

🔥 See Today's Deal on Amazon

Specification

BrandFiiO
ModelK11 R2R
TypeDesktop DAC + Headphone Amp with discrete R2R ladder DAC
Dac ArchitectureDiscrete 24-bit R2R resistor ladder (hand-picked)
Sample Rate SupportPCM up to 384 kHz / 32-bit, DSD256 native, MQA rendering
InputsUSB-C, Coaxial S/PDIF, Optical (Toslink), Bluetooth 5.1 (LDAC / aptX / SBC)
Headphone Outputs4.4 mm balanced + 6.35 mm single-ended
Line OutputsRCA (fixed) + 4.4 mm balanced (fixed)
Power Output Balanced1400 mW × 2 @ 32 Ω (balanced 4.4 mm)
Power Output Single Ended700 mW × 2 @ 32 Ω (6.35 mm SE)
Snr121 dB (A-weighted)
Thd N< 0.0007% (1 kHz, balanced)
Frequency Response20 Hz - 40 kHz
Gain ModesLow / High switchable
Power SupplyExternal DC 15 V / 1 A adapter (included)
Dimensions5.75 x 5.24 x 1.54 in (approx. 146 x 133 x 39 mm)
Weight0.90 lb (approx. 410 g)
ChassisCNC-machined aluminum
