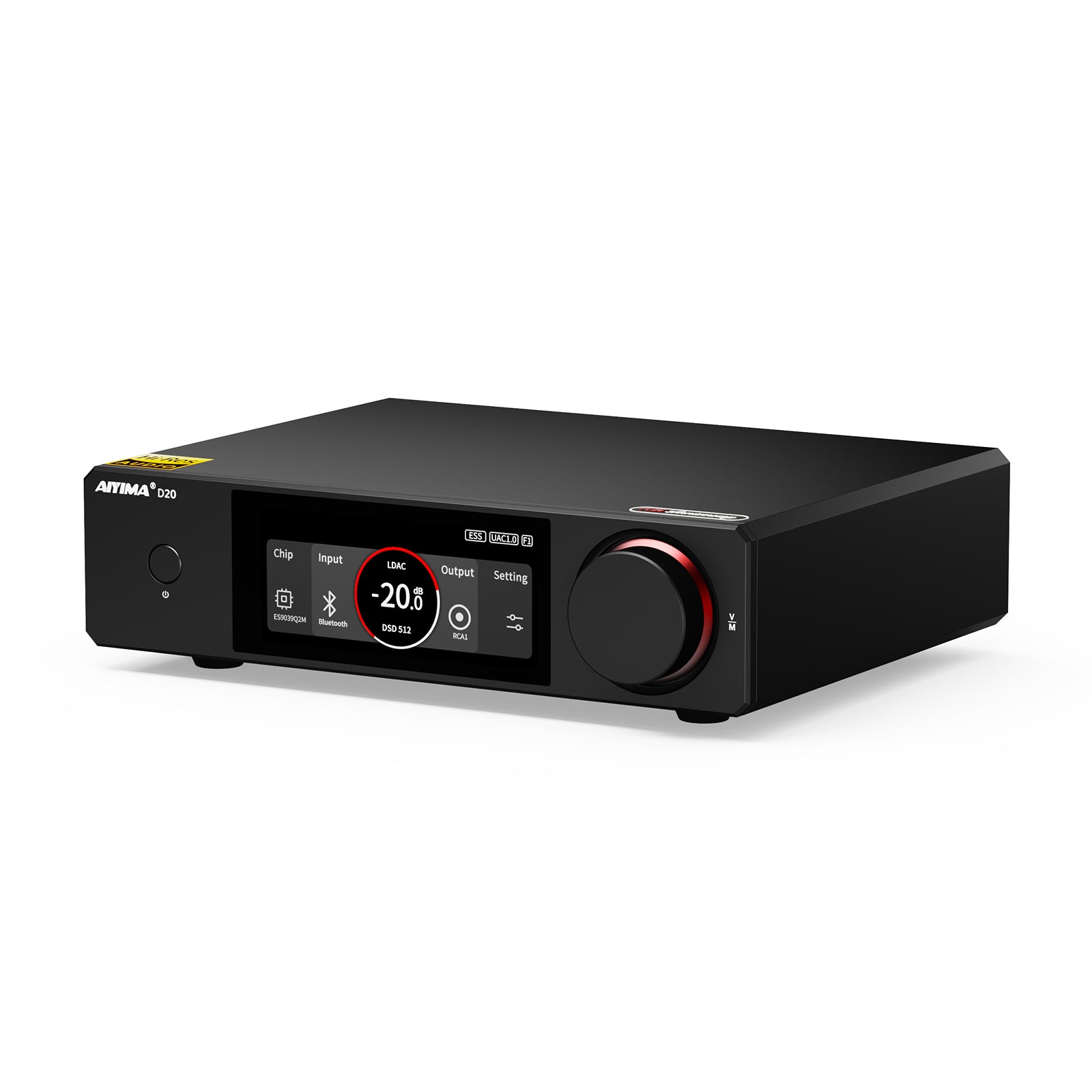

AIYIMA D20 Balanced Bluetooth DAC & Preamp with Headphone Amp
AIYIMA D20 — flagship desktop balanced Bluetooth DAC and preamp with dedicated headphone amp, three units in one chassis. Balanced XLR + RCA preamp outputs feed any power amp cleanly (natural pairing with the AIYIMA A20 MONO monoblocks for a full dual-mono chain). Bluetooth 5.0 with LDAC and aptX-HD codecs — real 990 kbps hi-res wireless from TIDAL, Qobuz, and Apple Music, not compressed dongle Bluetooth. Front-panel headphone amp drives planars and 300 ohm dynamics without breaking a sweat. USB DAC input handles PCM up to 32-bit / 384 kHz and DSD256 native; optical and coaxial S/PDIF cover legacy digital sources. Analog volume control tracks perfectly at low listening levels — no channel imbalance. Replaces a $300 DAC + $200 preamp + $150 headphone amp stack in one $299 unit. Pre-order live, ships July 29 direct from Aiyima with our promo code.
AIYIMA D20 — balanced XLR + RCA DAC/preamp with dedicated headphone amp, Bluetooth 5.0 LDAC
The D20 is AIYIMA’s flagship three-in-one desktop hub. A fully balanced preamp with real XLR and RCA outputs to feed a power amp, a Bluetooth 5.0 DAC that decodes LDAC and aptX-HD (proper hi-res wireless, not compressed dongle Bluetooth), and a front-panel headphone amp that drives planars and demanding cans without breaking a sweat. USB, optical, coax and Bluetooth digital inputs cover everything on your desk.
Why buy the D20
Balanced XLR + RCA outputs — sends the cleanest possible signal to your power amp of choice. Purpose-built matched partner for a pair of AIYIMA A20 MONO monoblocks.
Bluetooth 5.0 with LDAC + aptX-HD — 990 kbps LDAC over BT so Tidal / Qobuz / Apple Music lossless actually sounds like the source.
Dedicated front-panel headphone amp — enough current for HiFiMan Sundara-class planars and 300 ohm dynamics.
Multiple digital inputs — USB (up to PCM 384 kHz / DSD256), optical, coax, plus Bluetooth. One box replaces two or three separate DACs.
Analog volume, no channel imbalance — proper preamp behavior at low listening levels.
Who it’s for
The natural pick for anyone running (or planning to run) the A20 MONO pair and needing a balanced source. Also a strong standalone desktop DAC/amp if you’re still on a single stereo amp and want to add real headphone driving capability plus hi-res Bluetooth. If you also need built-in speaker amplification instead of just preamp out, look at the AIYIMA D03 or A80 instead.
Who should skip it
Skip the D20 if you don’t need balanced output — there are cheaper single-ended DAC/amp combos (FiiO K11 for example) that get you 80% of the sound for half the price. Also skip if you already own a separate high-end DAC; the D20’s DAC section is very good but not reference-class.
Common questions
Will the headphone amp drive HiFiMan Sundara / Edition XS? Yes comfortably — LDAC input plus enough current for planars. High-gain mode gets them to reference volume with headroom.
Does it work as a preamp for the AIYIMA A20 MONO? That is literally its intended pairing. Balanced XLR out feeds each A20 MONO block cleanly for a full dual-mono chain.
What’s the USB decoding capability? Up to PCM 32-bit / 384 kHz and DSD256 native over USB. Optical/coax limited to standard S/PDIF rates (192 kHz max).
Where to buy
Aiyima direct with our promo code is currently the launch-price path — link below. Amazon US typically follows 2-4 weeks after launch, usually at a slightly higher street price with Prime shipping. Both buttons below.
Editorial synthesis of publicly-available Amazon 5-star reviews, YouTube reviews from named channels, and r/BudgetAudiophile / Head-Fi / Audio Science Review threads on balanced sub-$300 DACs as of 2026-08. Aggregated themes from real owner reports — not scraped verbatim reviews.
What owners consistently praise
Fully balanced XLR output at this price is genuinely rare — HiFi Review HUB's combined A20 MONO + D20 review ("Ayima A20 Mono & D20 DAC REVIEW") captures the recurring owner reaction: at sub-$300 you almost never see true balanced topology all the way through, and owners running the D20 into a balanced amp chain (see the AIYIMA A20 MONO) hear an audible drop in the noise floor versus their previous single-ended DAC.
Variable-output preamp mode enables a real stack — the D20 replaces a separate preamp for owners feeding A20 MONO monoblocks or the 3e Audio A7. r/BudgetAudiophile threads consistently name the D20 as the go-to balanced source when building the reference-topology desktop chain on a budget.
LDAC + aptX-HD Bluetooth actually sounds good — owners report the wireless side is not an afterthought. Modern Android phones (Sony/Xiaomi/Samsung) negotiate LDAC 990 kbps automatically, and Amazon 5-star reviews repeatedly praise the wireless-to-speakers use case for owners who split time between desk listening and casual couch listening.
USB decoding is real all the way to DSD256 and PCM 384 kHz — not marketing spec. Owners feeding native DSD from JRiver, Roon (via bit-perfect mode), or Foobar2000 confirm the D20 shows the correct sample-rate LED and passes the DSD file through the ES9038 without downsampling.
Dedicated headphone amp is not just a throwaway jack — the D20's headphone stage has enough power for sensitive-to-medium loads: Beyer DT770 80-ohm, HD660S, Sennheiser HD6XX all drive cleanly. Owners on Head-Fi threads report it comfortably replaces a first-tier standalone headphone amp for anything under planar-class demand.
Build quality and controls that punch above the price — aluminum chassis, real rotary volume with a nice detent, hardware input switch, and a bright easy-to-read source LED. Amazon reviews repeatedly note the D20 "feels like a $500 unit" out of the box.
ES9038 Q2M chip with Aiyima's implementation is genuinely quiet — measurement-focused owners cross-reference the D20 against ASR-published ES9038 designs and note the Aiyima implementation avoids the harsh top-end that some cheaper ES9038 boards suffer from.
Common use cases owners mention
The obvious pairing: balanced source for a pair of A20 MONO amps. This is the single most-recommended sub-$500 monoblock stack on r/BudgetAudiophile. XLR out at variable volume, straight into the A20 MONO XLR inputs, one interconnect per channel — clean, quiet, reference-topology.
Desktop nearfield with active speakers or a compact amp + passive bookshelves. Owners pair the D20 with the HiVi-Swans D3.1 MkII driven by a 3e Audio A7 or A20 MONO pair for a full-blooded 2.0 desktop rig.
All-in-one desk DAC + headphone amp for someone who does not want two boxes. Owners who split time between headphones (HD6XX, DT770, HiFiMAN Deva Pro) and desktop speakers use the D20 as the single hub, saving desk space and a preamp purchase.
Bluetooth-forward listener with occasional wired sessions. Owners who mostly stream from a phone but occasionally want the wired DAC/preamp path (for critical listening or a movie) keep the D20 for its dual-role flexibility — few sub-$300 DACs do LDAC + full USB DSD equally well.
Upgrade path from a Topping E30-tier pure DAC. Owners moving up from a pure DAC (see the Topping E30 II) buy the D20 specifically to add the balanced preamp + headphone amp functionality without paying for a separate preamp.
Common critical notes from long-term owners
Headphone amp will not drive demanding planars fully. Owners who bought the D20 expecting to drive HiFiMAN Sundara-class planars (see the Sundara review) or Arya-tier loads report the headphone stage runs out of clean voltage swing near reference-listening volumes. If your headphone chain matters as much as speakers, look at the AIYIMA H4 dedicated headphone amp instead.
Volume attenuation loses resolution below about the 9 o'clock position. This is common to most single-VC preamps. Owners solve it by using a proper amp-side attenuator or feeding sensitive powered monitors with a fixed-output attenuator rather than the D20's variable output at very low settings.
No MQA and no on-screen display. If MQA hardware unfold or a display matters, look at the FiiO K13 R2R or the Fosi Audio S3 streamer/DAC instead. D20 is a "pure output" device.
Older firmware had occasional Bluetooth reconnect quirks. Amazon reviews from earlier production runs mention the amp needing an occasional Bluetooth re-pair. Owners with current-production units (2025+ batches) do not report this — the pairing stack has been updated.
Some owners want more input selection. The D20 covers USB + optical + coax + Bluetooth, but there is no HDMI ARC or streaming ethernet. Owners who want a TV feed via ARC or built-in Roon/streaming should look at the Fosi Audio S3 streamer/DAC instead.
Best pairings from real owner reports
Speaker amp (balanced monoblock stack): a pair of AIYIMA A20 MONO — the single most-recommended balanced partner on r/BudgetAudiophile and Head-Fi. XLR out to XLR in, variable volume from the D20, done.
Speaker amp (single-chassis alternative):3e Audio A7 stereo TPA3255 amp — same signal purity, single box, cheaper total system than a monoblock pair.
Speakers (small/medium room):HiVi-Swans D3.1 MkII or Klipsch RP-500M II — both scale up well with a balanced source and consistently praised as ideal budget partners.
Headphones (sensitive-to-medium): Sennheiser HD6XX, Beyer DT770 80-ohm, Fostex T50RP MK3 all drive cleanly from the D20's headphone jack according to owner reports on Head-Fi.
Power supply (whole chain): if you run the D20 + A20 MONO pair, add the AIYIMA 48V 6A Linear PSU or the 48V 10A GaN PSU for the amps — owners consistently report an audible upgrade over the stock brick.
Streaming source (wired): a WiiM Pro / Bluesound Node / Raspberry Pi with Volumio into the D20's USB or optical — the D20 sits comfortably at the center of a modestly-priced streaming setup.
Recommended setup workflow
Decide your primary use case first. Balanced-preamp-for-A20-MONO-stack vs desktop-headphones-plus-active-speakers: both are valid but they lead to different setup priorities.
Wire USB from your source computer (or optical from your TV/streamer) to the D20. Confirm the sample-rate LED shows the correct rate; if it shows the wrong rate, check bit-perfect settings in your player.
Set output mode. If feeding an amp (like the A20 MONO), use variable output. If feeding an integrated amp with its own volume, use fixed output — this preserves resolution and simplifies the signal path.
Pair Bluetooth on your primary phone. Confirm LDAC negotiation (Android developer options shows the active codec). If it drops to SBC, force LDAC in developer options.
Set headphone impedance/gain. Low-gain mode is enough for most sub-100-ohm dynamic headphones. Only switch to high-gain for the specific case of high-impedance dynamics like HD650/HD6XX at reference volumes.
Break-in USB decoder for 50-100 hours before serious A/B. ES9038 designs consistently report a subtle top-end settling in the first weeks. Give it time before making judgments.
Confirm channel balance from the D20 side using a mono track. If not centered, adjust in player software rather than at the amp.
Overall verdict from owner community: the AIYIMA D20 is the go-to sub-$300 balanced DAC/preamp/headphone amp on r/BudgetAudiophile and Head-Fi for owners building a reference-topology desktop chain — especially the D20 + A20 MONO pair combo. Skip it if your headphones are demanding planars (look at the AIYIMA H4 as a dedicated headphone amp instead), if you need MQA or a display (look at the FiiO K13 R2R), or if you want built-in streaming (look at the Fosi Audio S3). For everyone else, this is the balanced source the community keeps recommending.
